The layout and height requirements of hangar are special, which directly affect the structure of hangar.
The layout and height requirements of hangar are special, which directly affect the structure of hangar. Due to the large span of hangar, the self weight of the structure (mainly refers to the roof system) also accounts for a large proportion of the total load. If the self weight of the structure can be reduced, obvious economic effect can be obtained. The steel structure has the advantages of high strength, light weight, small cross-section, weldability and simple manufacturing process, so it is common to use steel structure as roof bearing system in long-span structure.
Steel structure project is third generation construction, This kind of steel structure workshop can effectively reduce the load-bearings and significantly strengthen the stability of the project, low cost, practical, artistic, fashionable and durable. What's more, can reduce the pollutions to the environment.
PRODUCT FEATURES
1. Prefabricated and customized design
2. Low foundation cost, thanks to the light weight of the structure itself
3. Easy construction, time-saving, and Labor saving
4. Flexible layout, beautiful appearances, and higher space efficiency
PRODUCT SPECIFICATIONS
Item Name | Steel construction |
Main Material | Q235/Q345 (Q 355) Welded H (box) steel / Truss / Hot Rolled Section Steel / Square Steel Tube,C/Z Purlin |
Surface | Hot Dip Galvanized or Painted |
Roof & Wall Panel | EPS, Rockwool, PU Sandwich panel /Single Corrugated Steel Sheet/ Colour sheet with Glass-wool |
Window | PVC Steel or Aluminum Alloy |
Door | Sliding Door (sandwich panel) or Rolling Up Door |
Crane | 5T, 10T, 15T, etc. As request |
Bolt | foundation bolt, high strengthen bolt, normal bolt, screw, rivet |
Service | Design, Fabrication and Installation |
We can make quotation according to customer's drawing or requirements | |
(size by length/ width/ height), offering a free design | |
drawing and all detailed drawings for installation. | |
Packing | According to customer's requirements |
Load into 40/20GP, 40HQ or 40OT |
DESIGN PARAMETERS
1. Live load on roof (Kn/M2)
2. Wind speed (Km/H)
3. Snow load (Kg/M2) - If Applicable
4. Seismic load - If Applicable
5. Size: width * length * eave height, roof slope
6. Style of roof drainage: with gutter & rain pipes or non? Is there Parapet wall?
7. Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure and min. Wheel pressure
8. Style & position of Doors and Windows
9. Other your idea!
PROJECT CASES

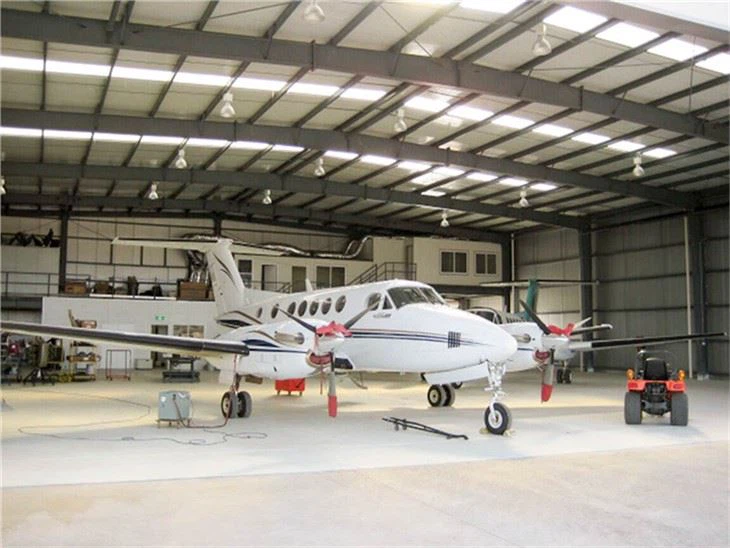

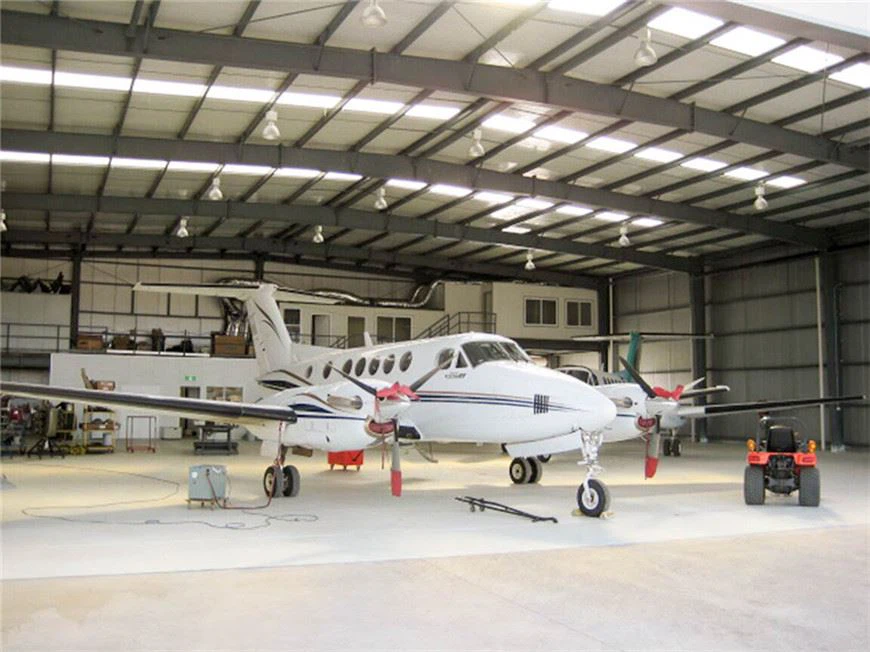

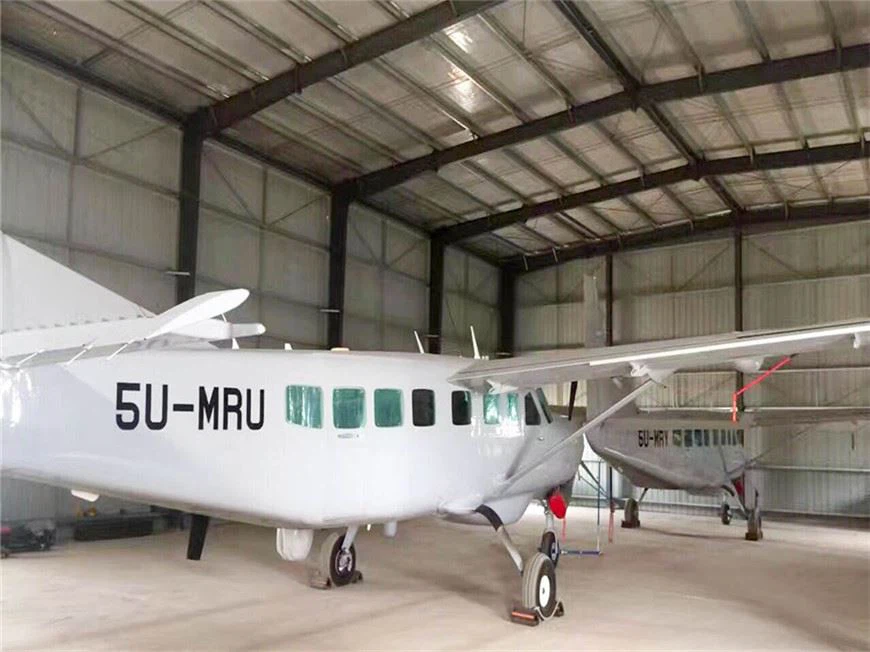

Australian hangar
