A modern chicken farm is inseparable from a fully automated system, but how to choose the equipment? What is the best performance of the equipment? Xinguangzheng provides the following performance indicators for your reference. 1. Rack The frame of the fully automatic chicken raising equipment...
A Modern Chicken Coop is inseparable from a fully automated system, but how to choose the equipment? What is the best performance of the equipment? Xinguangzheng provides the following performance indicators for your reference.

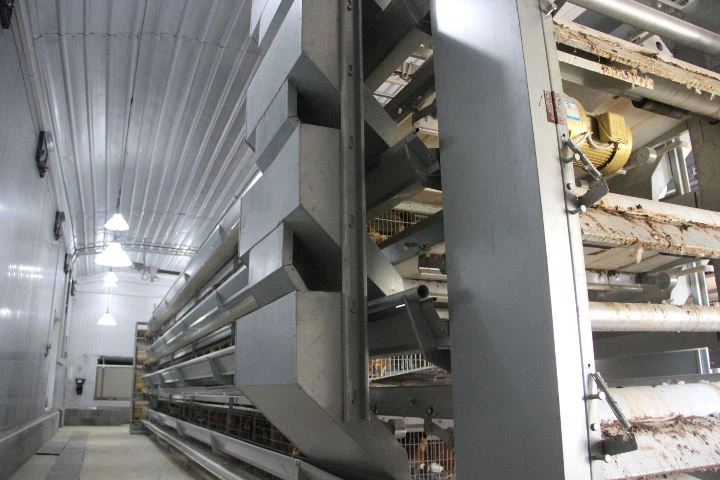

1. Rack
The frame of the fully automatic chicken raising equipment is welded with high-quality steel rectangular steel. The frame of Modern Chicken Coop is designed by engineers with many years of structural design experience. The frame is reasonable in structure, with large load-bearing capacity, and the structure is not deformed. The chicken raising equipment rack provided by Xinguangzheng has been widely recognized by the international and domestic markets after repeated experiments.
2. Walking power system
The walking power system of the fully automatic chicken raising equipment is driven by a vertical motor with an advanced cycloidal pinwheel reducer, and the drive is without loss. The failure rate is low, the life is long, and the operation is stable, the noise is low, and the impact of noise on the chickens is reduced. Improve egg production rate.
3. Walking system
The transmission mechanism of the walking system of the automatic chicken breeding equipment adopts chain and sprocket transmission. The walking wheel is made of high-quality cast iron, and has good shock resistance and corrosion resistance. The guide rail is laid with rectangular square profiles to make the walking stable and increase the contact area. Prevent skidding and save energy.. Keep walking about 12 meters per minute.
4. Feeding power system
The feeding system of the automatic chicken raising equipment adopts reduced and variable speed motors as power, and can be adjusted at 15~75r/min. It has high adjustment sensitivity and strong bearing capacity, low noise, long life, simple operation, and stable force. Beautiful appearance, Advantages such as small structure.
5. Material volume adjustment system
The feeding wheel of the automatic chicken raising equipment is a plastic part pressed by a special mold to prevent foreign matter from falling into the other parts. Adjusting the feeding wheel can make the feeding volume of each feeder keep the same. Achieve uniform feeding Purpose. By adjusting the speed of the variable speed motor, the adjustment range of the blanking amount is changed between 1.25Kg~5.85Kg/12m per minute.
6. Automatic drinking water system
This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry. It is one of most important parts of Modern Chicken Coop.

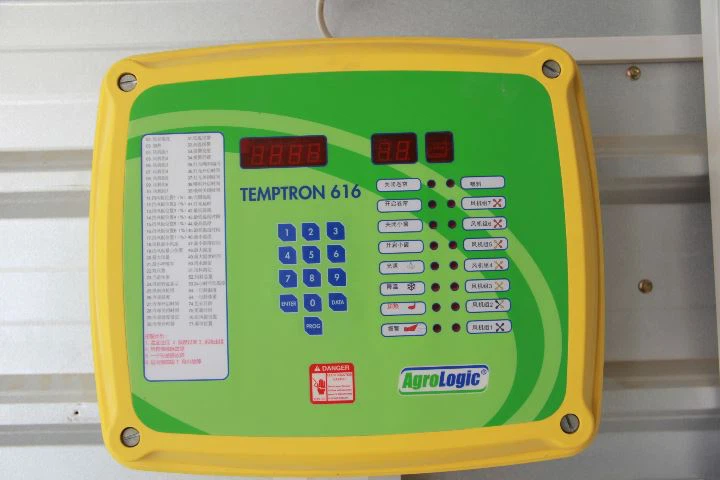

7. Power distribution system
The power distribution system adopts national standard electrical appliances and is designed by professional electrical engineers. After starting, the fully automatic chicken feeding equipment will stop automatically after walking to the tail, saving manpower and easy management. Various electrical control systems can also be designed according to the needs of users .
