Integration (steel structure building construction + breeding equipment design and manufacturing + environmental control design + installation and after sales) greatly shortens...
Eggs are a cheap and good-quality animal protein food. Due to their high protein, low fat, low calorie, high absorption rate, and high conversion rate, eggs have become the most widely accepted source of high-quality animal protein by residents all over the world.
At present, the layer breeding industry has developed from scattered production to large-scale and standardized production. For farmers, shortening the cycle and increasing production capacity are the most able to help solve the fundamental problem.

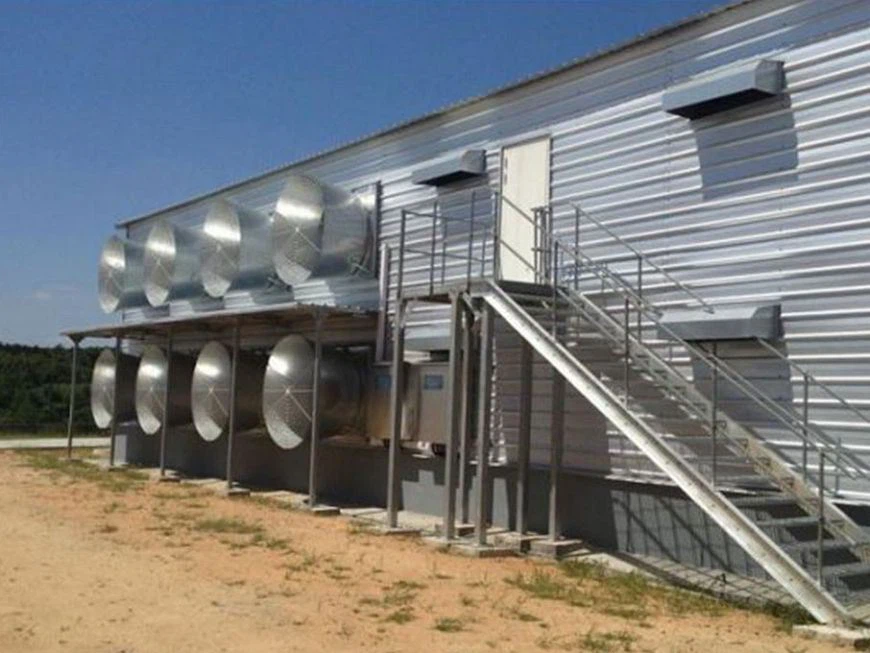

STEEL STRTCTURE CHICKEN HOUSE INTRODUCTION
Integration (steel structure building construction + breeding equipment design and manufacturing + environmental control design + installation and after sales) greatly shortens the construction period compared with traditional chicken houses, and the coordination between the various professions is more closely. It has better heat preservation and insulation. The chicken house is composed of feeding system, water drinking system, environmental control system and lighting system, which can improve the economic benefits of breeding.
CHICKEN HOUSE ITEM ADVANTAGES
1. We can supply both steel structure chicken house and inner full set automatic equipment for both laying hens and broilers.
2. All the steel frame are glavanized steel
3. Insulation:glavanized steel sheet + glass wool composite at project sit or choose EPS / fiber glass sandwhich panel

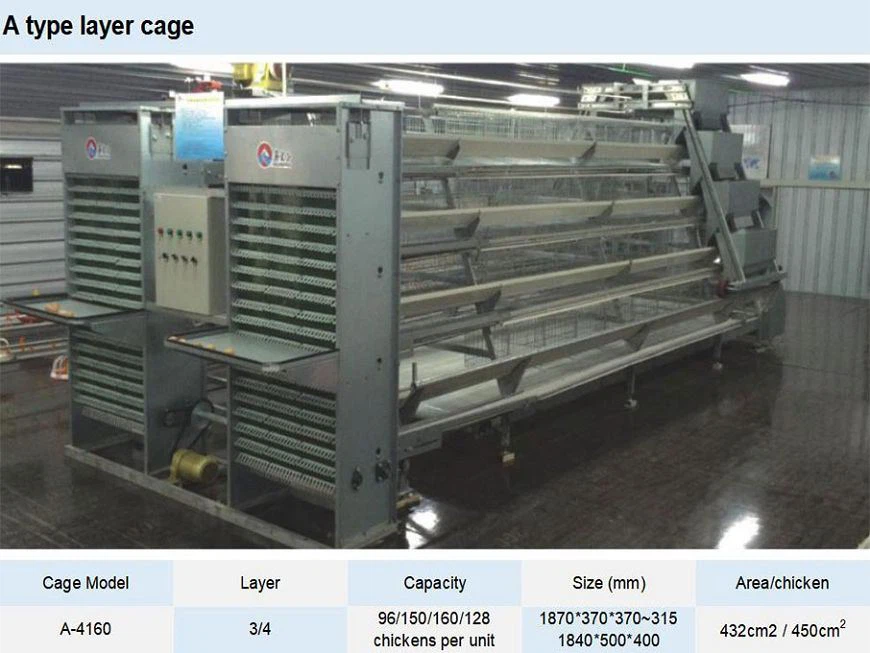

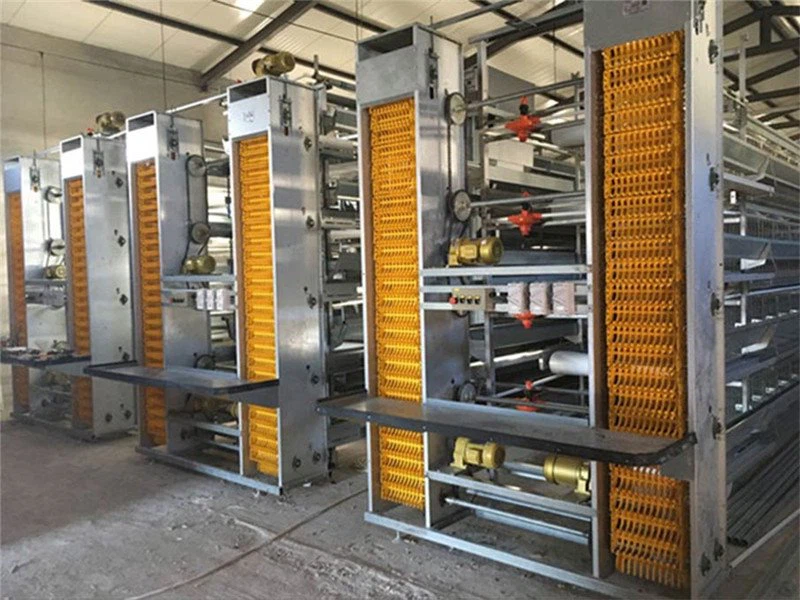

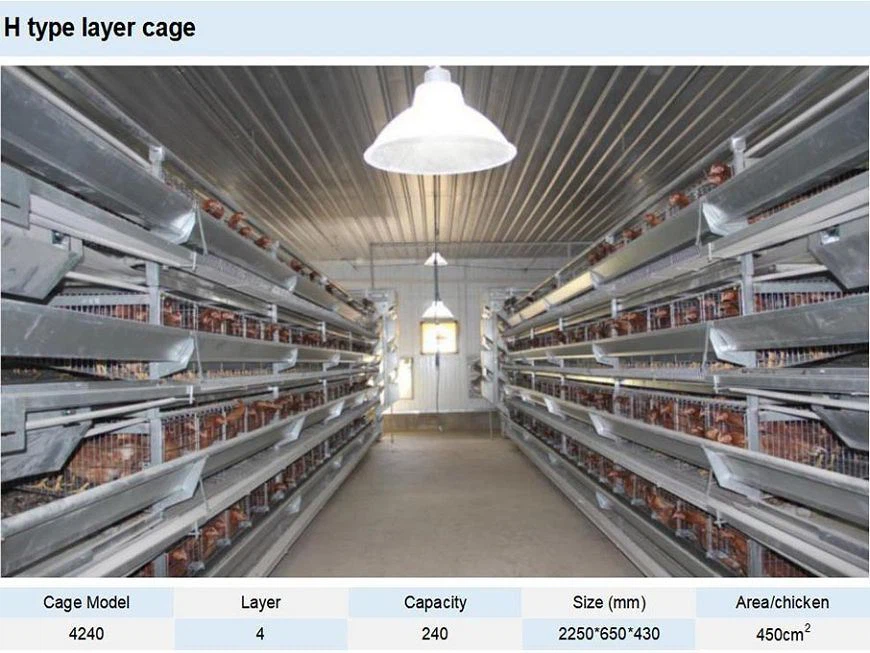

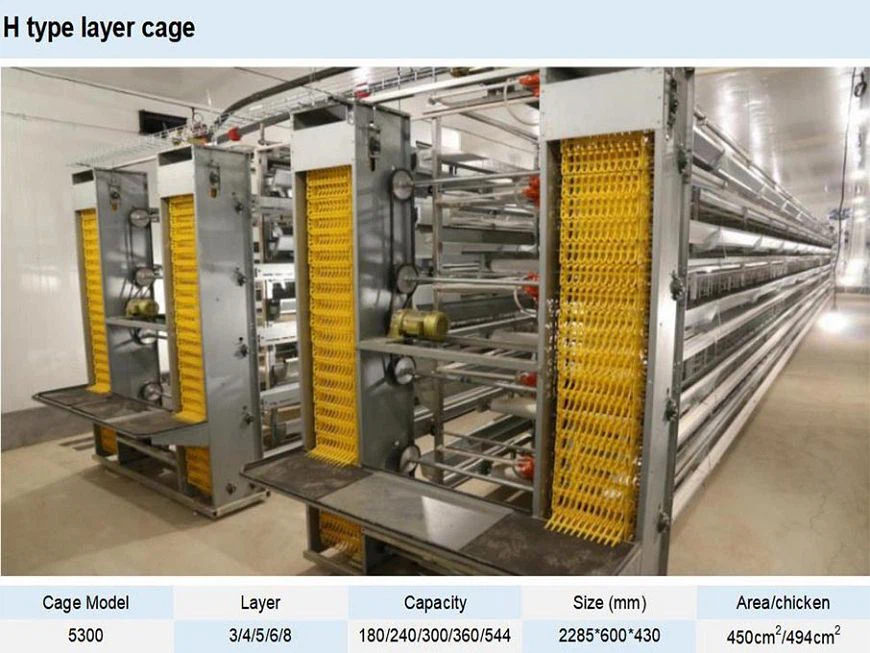

4. For layer /laying hens: we can supplier H type cage( battery cage) and A type cage, feeding line /drinking line /manure clean systerm /spray indisfect systerm are all automatic
5. For broilers: You can chose feed on floor or on the plastic floor, all the equipment we can supplier
6. We also can design and supplier equipment for you if you want to icubation and slaughter yourself. Including salugtter workshop we can do one stop service, because we are also a professional steel structure company since 1996.
MAIN COMPONENTS OF STEEL STRUCTURE CHICKEN HOUSE
Items | Specification |
1. Base: | Concrete and steel foundation bolts |
2. Column and beam: | Material Q345or Q235 steel, all bolts connection, straight cross-section or Variable cross-section |
3. Bracing: | X or V or other type bracing made from angle, round pipe etc. |
4. Galvanized C or Z purlin: | Size from C100~C320,Z160~Z300 |
5. Roof and Wall Panel : | 1. Single colorful corrugated steel sheet -- Thickness: 0.4-0.7mm; Width: 470-1150mm, etc. |
2. Sandwich panel with EPS, rock wool, glass wool, PU etc. | |
Insulation -- Thickness around 50mm~150mm; Width : 960mm or 950mm | |
6. Vertical and transversal support: | Q235 angle steel, round bar or steel pipe. |
7. Wall | Wire meshes with curtain system or sandwich panel |
8. Equipment | 1. Main feeding line system |
2. Poultry feed pan system | |
3. Nipple drinking system | |
4. Ventilation system | |
5. Cooling pad system | |
6. Spraying system | |
7. Heating system | |

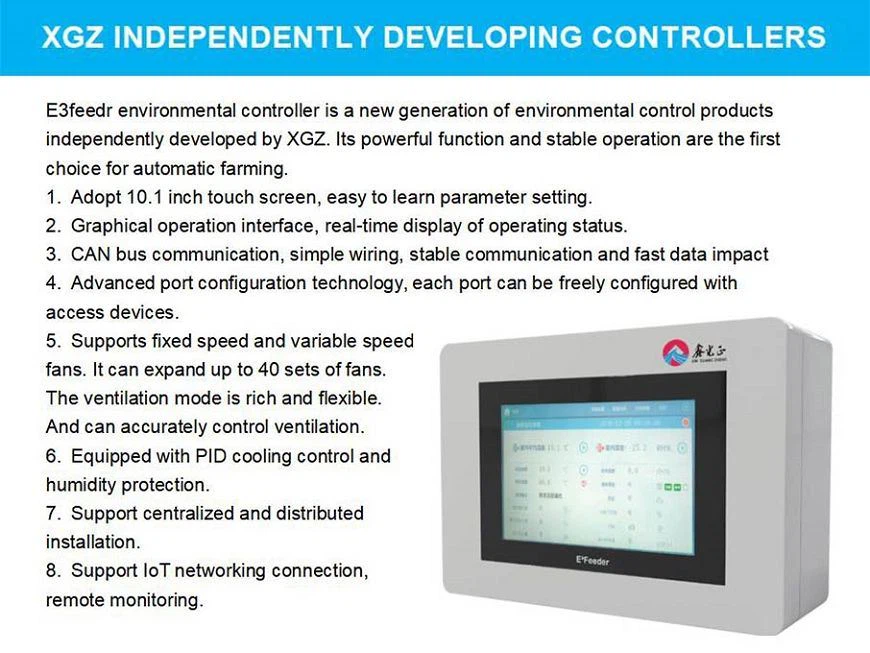

8. Environment control system | |
9. Life span | 50 years |
10. Packing | Standard container package 40 GP or 40 HQ container |
11. Size | Customized |
12. Installation on site | Available |
POULTRY FARM EQUIPMENT INCLUDES:
FAQ:
1. You are manufacture factory or trading company?
A: We are manufacture factory. And you are welcomed to visit us for inspection. Xinguangzheng workshop and the quality control flow will show you our professional.
2. Is your price competitive with other companies?
A: Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost.
3. Do you offer service for installation?
A: We will give detailed installation drawings and direction info for free. And we could send engineers as installation director even a team.
4. Do you accept container loading inspection?
A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Welcome to contact us!
