High Efficiency and Energy Conservation: the excellent thermal insulation performance reduces building energy consumption and reduces costs on air-conditioning equipment.

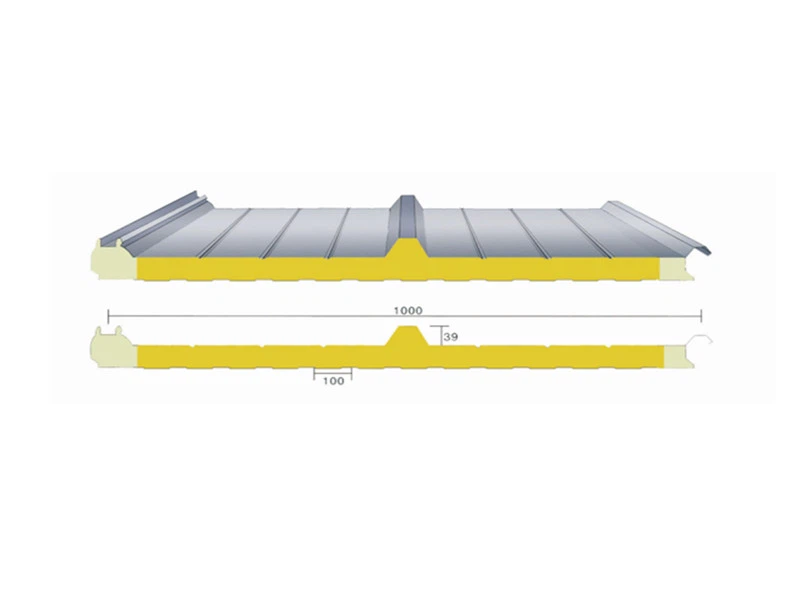

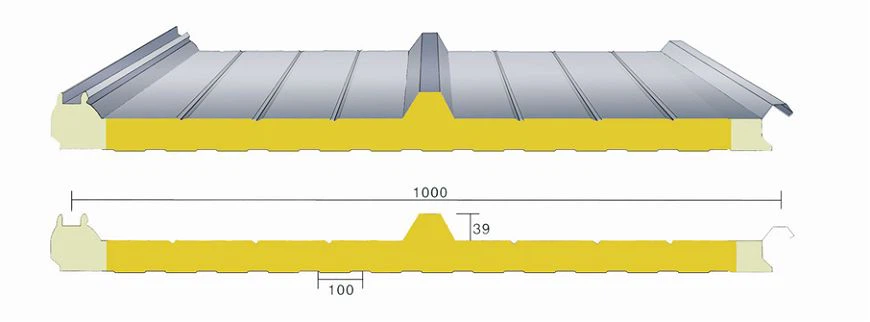

PLATE TYPE
PRODUCT PARAMETERS
|
Panel type |
Glass wool roof panel with PU edge sealing |
|
|
Effective width (mm) |
1000 |
|
|
Steel thickness |
0.47-0.7 |
|
|
Core type |
Glass wool |
|
|
Heat transfer coefficient (W/m·K) |
0.035-0.041 |
|
|
Core thickness (mm) |
50, 60, 75, 80, 100, etc. |
|
|
Recommand steel plates |
Brand |
Bao Steel, Yieh Phui Steel, Guanzhou Steel, etc. |
|
Painting |
PVDF, SMP, HDP, PE; The top painting should be above 25 μm |
|
|
Galvanized layer |
Exterior plate: 55% Aluzinc above 100g/m2 or Zinc coating above 150g/m2 |
|
|
Inner plate: 55% Aluzinc above 70g/m2 or Zinc coating above 100g/m2 |
PERFORMANCE DESCRIPTION
High Efficiency and Energy Conservation: the excellent thermal insulation performance reduces building energy consumption and reduces costs on air-conditioning equipment.
Beautiful Shape: the hidden nail connection guarantees hidden screws and more beautiful building roofs.
Solid and Durable: high-strength panels and excellent mechanical properties of roofs.
Multiple Choices: rich colors.
Airtight sound insulation: good sound absorption. It can reduce the noise caused by the impact of rain and hail.
Waterproof and rust proof: large span, fast drainage, good waterproof effect; hidden screws make it not easy to rust, extending the service life of the panel.
