The flame resistance level reaches the level A, which has improved the overall fireproof performance of steel buildings.
PLATE TYPE
DIVERSE SIDE EFFECTS ARE OPTIONAL

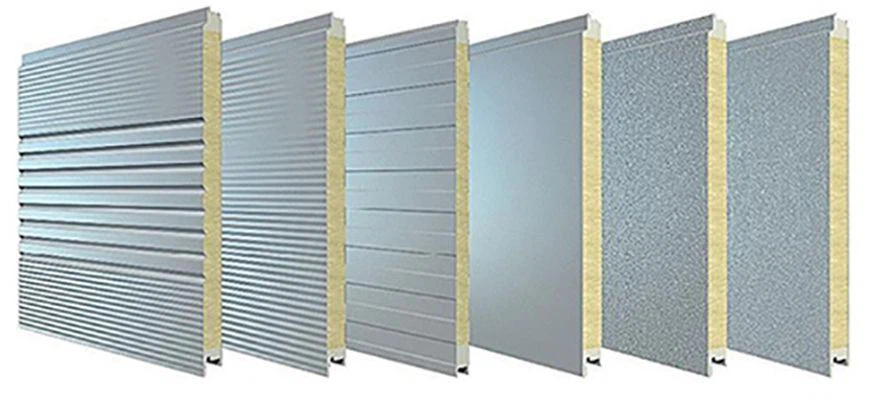

V8 Waves Ripples Straight Ribs Flat & Smooth Surface Flat & Smooth Surface Orange Pattern Color Embossing
PRODUCT PARAMETERS

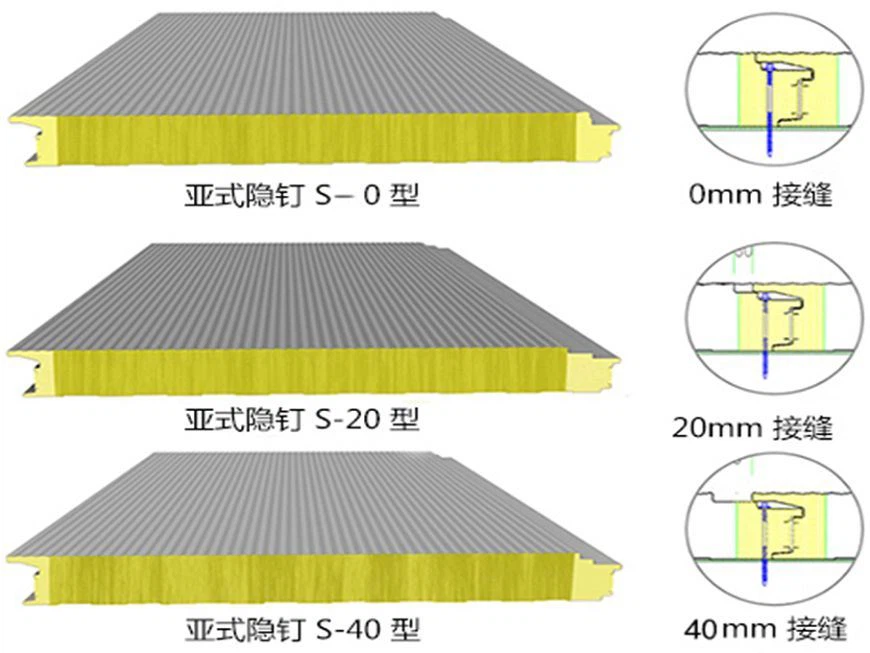

Panel type | European joint hidden type wall panel | Domestic joint hidden type wall panel | |
Effective width (mm) | 1000 | 1000 | |
Core thickness (mm) | 50, 75, 80, 100, etc. | ||
Recommand steel plates | Brand | Bao Steel, Yieh Phui Steel, Guanzhou Steel, etc. | |
Painting | PVDF, SMP, HDP, PE; The top painting should be above 25 μm | ||
Galvanized layer | Exterior plate: 55% Aluzinc above 100g/m2 or Zinc coating above 150g/m2 | ||
Inner plate: 55% Aluzinc above 70g/m2 or Zinc coating above 100g/m2 |
PERFORMANCE DESCRIPTION
The flame resistance level reaches the level A, which has improved the overall fireproof performance of steel buildings. The two edges of the tongue-and-groove is filled with polyurethane foams, which effectively stops heat conduction and rain leakage, prevents reduction of strength and thermal insulation performance caused by moisture absorption and makes fireproof and thermal insulation performance more durable. The high volumetric weight core material guarantees better thermal insulation performance (the volumetric weight of glass wool core materials ≥ 64kg/m3). The two edges of the tongue-and-groove is filled with rigid polyurethane foams to improve the overall strength and prevent deformation of the tongue-and-groove. The fireproof wool rotates 90° so that the wool fiber is perpendicular to the panel and the strength of pressure and tension resistance increases by 50%.
THE LOAD AND HEAT TRANSFER COEFFICIENT OF FIREWALL PANELS (GLASS WOOL CORE)
Panel thick (mm) | Heat transfer coefficient (W/m2·K) | Weight (kg/m2) | Load distribution | ||||||||||||
Single support (mm) | Continuous (mm) | ||||||||||||||
P= kn/m2 | 0.6 | 0.8 | 1 | 1.2 | 1.5 | 2 | 0.6 | 0.8 | 1 | 1.2 | 1.5 | 2 | |||
50 | 0.69 | 12.61 | L= | 4291 | 3746 | 3349 | 3042 | 2684 | 2254 | 4850 | 4195 | 3750 | 3407 | 3006 | 2524 |
75 | 0.47 | 14.16 | L= | 5711 | 5004 | 4490 | 4091 | 3627 | 3067 | 6396 | 5604 | 4491 | 5605 | 4062 | 3435 |
100 | 0.36 | 15.71 | L= | 6959 | 6106 | 5486 | 5005 | 4445 | 3770 | 7794 | 6838 | 6144 | 5605 | 4978 | 4222 |
Above L unit is mm. Above data calculated by 0.6mm steel exterior plate, 0.5mm inner steel plate and 64kg/m3 density glass wool. |
