High Efficiency and Energy Conservation: the excellent thermal insulation performance reduces building energy consumption and reduces costs on air-conditioning equipment.

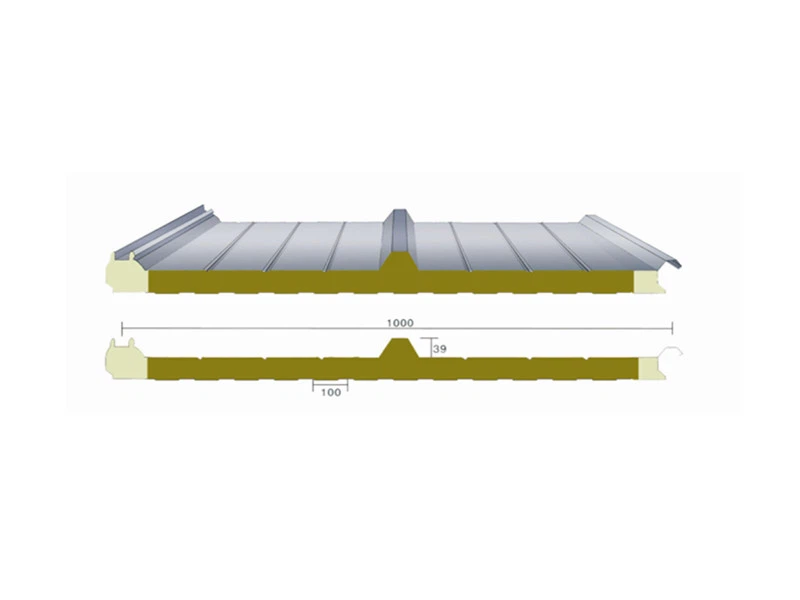

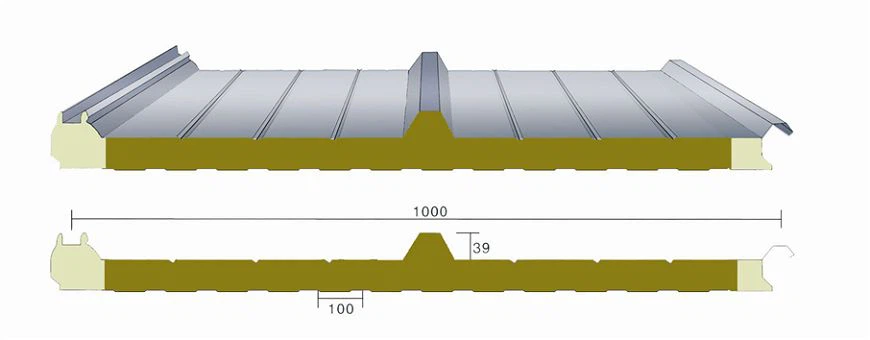

PLATE TYPE
PRODUCT PARAMETERS
Panel type | Rock wool roof panel with PU edge sealing | |
Effective width (mm) | 1000 | |
Steel thickness | 0.47-0.7 | |
Core type | Rock wool | |
Heat transfer coefficient (W/m·K) | 0.037-0.043 | |
Core thickness (mm) | 50, 60, 75, 80, 100, etc. | |
Recommand steel plates | Brand | Bao Steel, Yieh Phui Steel, Guanzhou Steel, etc. |
Painting | PVDF, SMP, HDP, PE; The top painting should be above 25 μm | |
Galvanized layer | Exterior plate: 55% Aluzinc above 100g/m2 or Zinc coating above 150g/m2 | |
Inner plate: 55% Aluzinc above 70g/m2 or Zinc coating above 100g/m2 |
PERFORMANCE DESCRIPTION
High Efficiency and Energy Conservation: the excellent thermal insulation performance reduces building energy consumption and reduces costs on air-conditioning equipment.
Beautiful Shape: the hidden nail connection guarantees hidden screws and more beautiful building roofs.
Solid and Durable: high-strength panels and excellent mechanical properties of roofs.
Multiple Choices: rich colors.
Airtight sound insulation: good sound absorption. It can reduce the noise caused by the impact of rain and hail.
Waterproof and rust proof: large span, fast drainage, good waterproof effect; hidden screws make it not easy to rust, extending the service life of the panel.
