Fire Prevention: high-quality water-proof rock wool and class-A fire-proof performance.

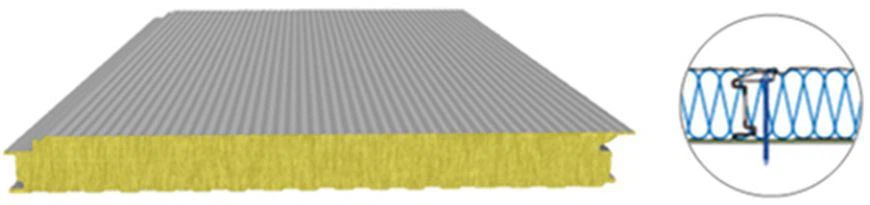

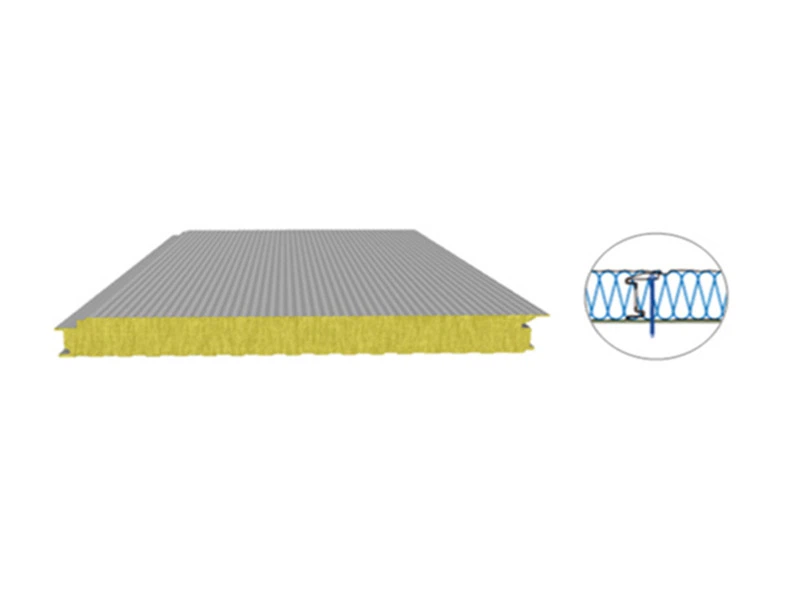

PLATE TYPE
PRODUCT PARAMETERS
Panel type | Rock wool sandwich composite panel |
Effective width (mm) | 1000 |
Available panel effects | Lishui corrugated panels, Smooth flat panels, Shine color embossing panels |
Length | It can be determined according to design requirements and transportation and installation conditions. |
Core thickness (mm) | 50, 75, 100, 150, etc. |
PERFORMANCE DESCRIPTION
Fire Prevention: high-quality water-proof rock wool and class-A fire-proof performance.
Thermal Insulation: the low coefficient of heat conductivity and the excellent node design guarantee the sealing performance and the thermal insulation effect.
Sound Insulation: the sound insulation effect is good. The sound reduction factor is no less than 30dB. It can effectively reduce the interference of outside noise.
Solid: the panel has high strength, unique double-support plug interface design and strong capacity in wind pressure resistance.
Beautiful Design: the panel adopts hidden-screw node design and has diversified panel effects.
SPAN TABLE (MAXIMUM DEFORMATION ≤L/240)
Panel thick (mm) | Heat transfer coefficient (W/m2·K) | Panel load | Single support | Continuous | ||||||||
P=kn/m2 | 0.6 | 0.8 | 1 | 1.2 | 1.5 | 0.6 | 0.8 | 1 | 1.2 | 1.5 | ||
50 | 0.8 | L= | 2930 | 2740 | 2550 | 2330 | 2060 | 2590 | 2400 | 2100 | 2060 | 1800 |
80 | 0.54 | L= | 3900 | 3490 | 3190 | 2930 | 2510 | 3380 | 3000 | 2780 | 2510 | 2180 |
100 | 0.43 | L= | 4350 | 3860 | 3560 | 3230 | 2780 | 3680 | 3340 | 3080 | 3810 | 2400 |
Above L unit is mm. Above data calculated by 0.6mm steel exterior plate, 0.5mm inner steel plate and 120kg/m3 density rock wool. | ||||||||||||
