Breadth: 930-1130mm
Thickness: PU/PIR: 40-300mm; rock wool+PU/PIR: 40-200mm
SPECS & PARAMETERS
Items | State | |
Panel specification | Breadth | 930-1130mm |
Thickness | PU/PIR: 40-300mm; rock wool+PU/PIR: 40-200mm | |
Length | ≤26m | |
Steel panel specification | Material | Color Coated Steel, 304/316 Stainless Steel |
Thickness | 0.4-0.8mm | |
Coating | PE/HDP/PVDF/SMP | |
PU core | Fire rating | level B1 (oxygen index ≥30%) |
Porosity by closed pore | ≥90% | |
Water absorption | ≤3% | |
Thermal conductivity | 0.018-0.024 | |
Heat-resisting range | From -185℃ to +110℃ |

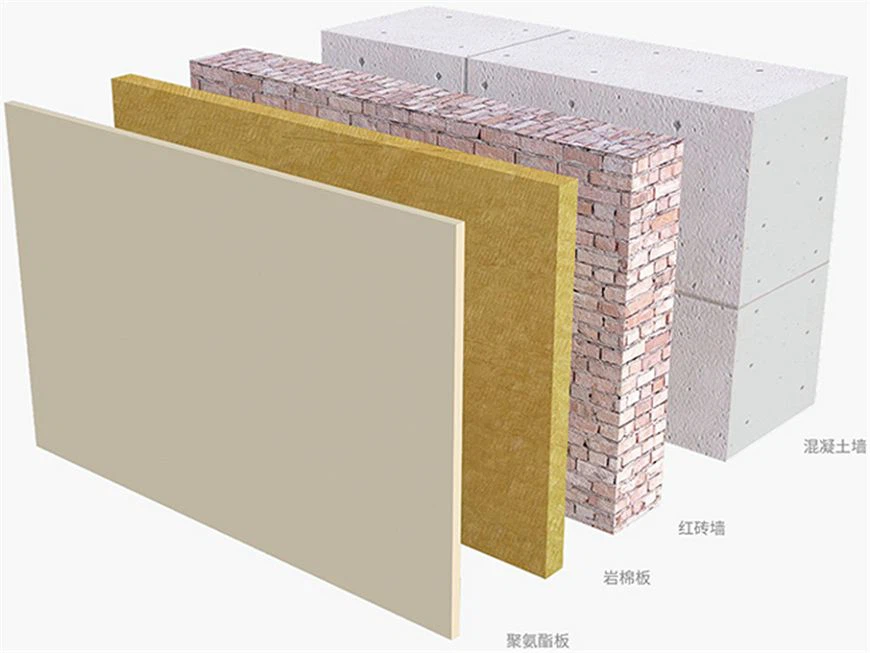

COMPARISON OF MATERIAL THERMAL INSULATION
SYSTEM SOLUTION

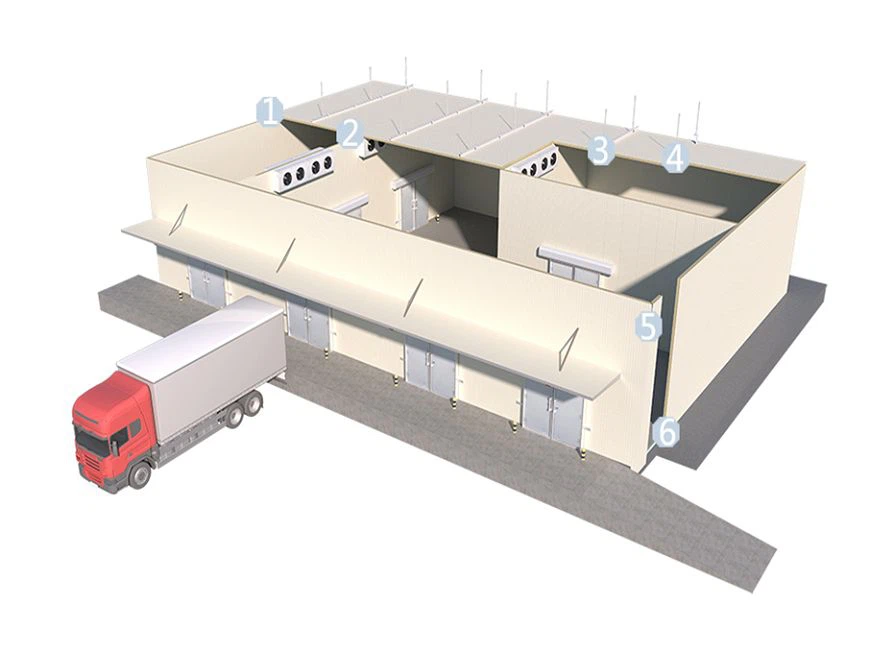

Diagram of cold storage system solution
Display of details (1)
Display of details (2)
Display of details (3)
Display of details (4)
Display of details (5)
Display of details (6)
