Design Of Steel Structure Workshop

A steel structure workshop is a type of building composed of the mainframe, mainly composed of steel columns and steel beams. Therefore, steel structure is the main load-bearing member of the steel structure workshop. The roof and walls of the steel workshop use various styles of panels, which overlap when assembled together without openings. As a result, the steel frame workshop can be isolated from the outdoor environment. Due to reasonable cost and short construction period, custom steel structural factory has been widely used in industrial and non-industrial buildings.

Steel structure workshop-the main choice for facilities

A steel structure workshop can be a cost-effective solution. There are a few reasons that make it a mainstream choice for building your studio.

Fast and flexible assembly. All components will be prefabricated in the factory and then shipped to the construction site. The installation process is quick and easy.

Cost-effective. This will significantly shorten the construction cycle of the building, thereby saving a lot of time and money.

High safety and durability. The steel structure is light in weight but high in strength and easy to maintain. It can be used for more than 50 years.

Optimize the design. The Prefabricated Steel Workshop can be isolated from the outdoor environment and avoid leakage such as water seepage. It also has excellent fire resistance and corrosion resistance.

High utilization rate. The steel structure is easy to move and migrate, and it can be recycled and reused without pollution.

Sturdy structure. The steel structure manufacturing workshop can withstand strong winds and heavy snow. It also has the excellent seismic performance.

Light steel structure workshop design

When designing a steel structure workshop, some factors should be considered for the best design. The costs include but are not limited to:

Anti-seepage: Prevent rainwater from seeping into the metal roof from the outside. Usually, rainwater enters the metal roof through overlapping seams or nodes. In order to achieve the anti-seepage function, a sealing washer should be used in the screw port, and then it should be hidden and fixed. Where the panels overlap, a sealant or welding treatment should be applied to eliminate overlap.

Fire protection: When a fire occurs, it must be ensured that the metal roof material will not burn and the flame will not penetrate the metal roof.

Windproof: Considering the maximum local wind pressure, the design of the steel structure workshop should ensure that the metal roof will not be pulled apart due to negative wind pressure.

Sound insulation: prevent sound from spreading to the room or from the room to the outside. Generally, insulating material will be filled between the layers of the metal roof panel. The sound insulation effect is highly related to the density and thickness of the sound insulation material.

Ventilation: Considering indoor and outdoor air circulation, ventilation openings should be provided on the roof structure of the building.

Moisture-proof: prevent water vapor from condensing on the top metal layer. The solution is to fill the roof slab with insulation cotton and paste the waterproof membrane on the roof slab.

Load-bearing: The steel structure shed workshop should have a large load-bearing capacity, can withstand heavy rain and heavy snow, and can withstand the load of construction and maintenance.

Lightning protection: Prevent lightning from penetrating the metal roof and entering the room.

Lighting: Skylights can be used to improve indoor lighting during the day. It can be a lighting panel or glass.

Control thermal expansion and contraction: Considering some areas with large temperature differences, it is necessary to ensure that the metal top plate will not be damaged by the stress caused by thermal expansion and contraction.

We have a variety of Steel Structure Car Garage available for sale, and can also help you design economical and suitable solutions to meet your needs. Looking for a steel workshop? Contact us online.

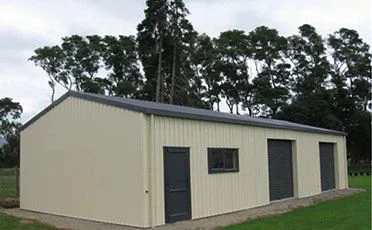

Steel Structure Car Garage

Construction plan

The installation procedures of the structural steel manufacturing workshop mainly include steel column installation, column support installation, temporary installation of suspension beams, installation of top beams and struts, correction and fixation of suspension beams, and maintenance of installed steel structures.

Regarding the installation of steel columns, due to the large weight and long length of the columns, it is impossible to produce and transport them at one time. Therefore, it will use a segmented manufacturing process and then assemble on the construction site.

In addition, various measures should be taken during the installation process to prevent component damage. For example, before lifting a steel column, a piece of wood should be placed on the column base plate to avoid damage.

How to take care of your steel structure workshop?

For owners of steel structure workshops, there are some precautions for building maintenance:

The steel structure should be painted and maintained after approximately 3 years of use to ensure its appearance and safety.

When using electrical equipment, wires and cables should be isolated with slotted pine to avoid electric shock accidents.

The steel structure workshop should be cleaned regularly.

Any damage to the surface of the metal plate should be repaired in time to prevent rain and sunlight from corroding the metal plate.

The maintenance of the steel structure design workshop has a lot to do with the service life of the building, so the owner should pay enough attention.
