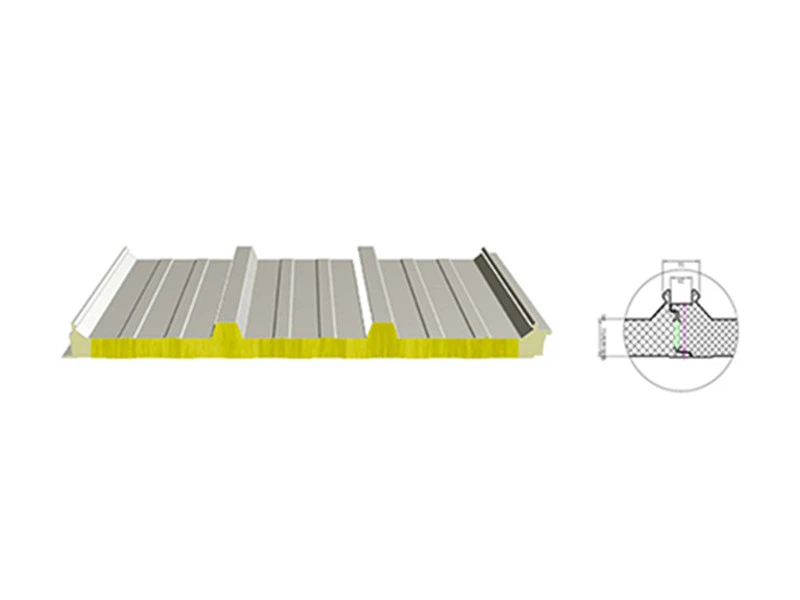

1000 Secret Nail Insulated Roof Panel

1000 Secret Nail Insulated Roof Panel

Connected to the sub-structure via screws; The lap joint is treated by edging process, resulting in a tighter lap to extend the service life of the panel.

PRODUCT DESCRIPTION

Product Features:

Connected to the sub-structure via screws;

The lap joint is treated by edging process, resulting in a tighter lap to extend the service life of the panel;

The core is made from high-quality hydrophobic Rockwool, supplemented with rigid PU on both sides, to enhance the overall strength and eliminate thermal bridge;

The unique wave design provides a reliable connection for the fastening of PV panels.


Items

Specs & Parameters

Effective Width

1000mm

Developed Width

1200mm

Wave Height

0.4-0.8mm

Panel Thickness

34mm

Colors Available

White Gray, Silver, Sea Blue, Porcelain Blue

Core Thickness

50/75/80/100mm

Core Materials

PU, Glass Wool, Rockwool
