The hidden screws guarantee excellent waterproof performance and prevent screw corrosion and thermal bridge phenomena. The crest wave height is 34 mm.

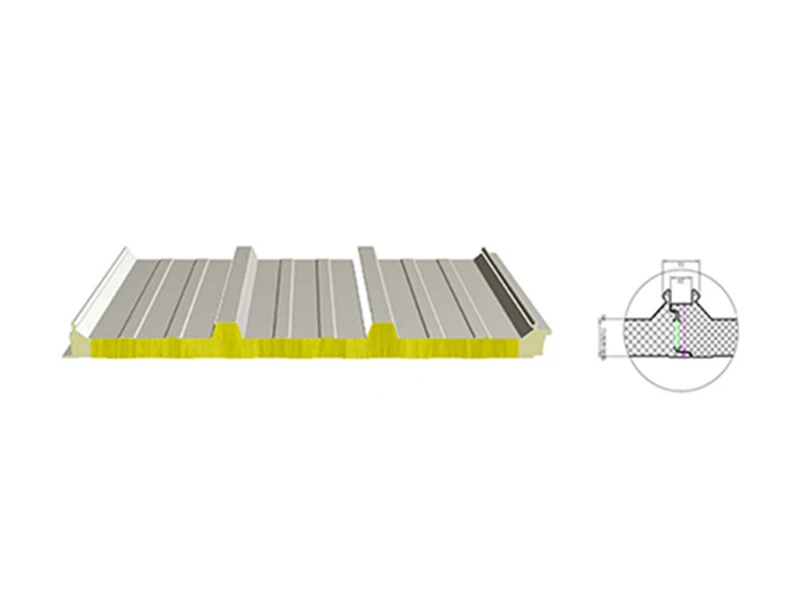

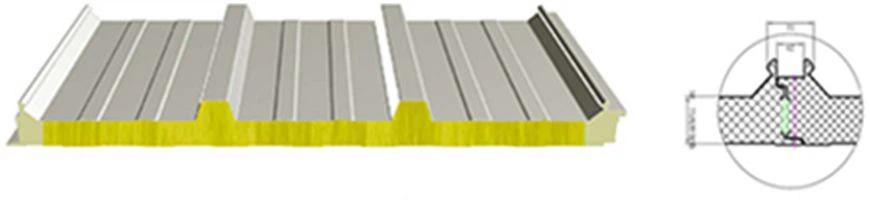

PLATE TYPE
PLATE ADVANTAGES
The hidden screws guarantee excellent waterproof performance and prevent screw corrosion and thermal bridge phenomena. The crest wave height is 34 mm. The three-crest wave design has improved the bearing capacity of roof panels, reduced the amount of root purlines, improved the bearing capacity and balanced the running water action.
PLATE UPGRADE
Roof panel wave structure upgrade, can fix clamp directly, that makes installation of roofing photovoltaic solar and other systems easy and safe, promote effective utilization rate of roof.
PRODUCT PARAMETERS
Panel type | European hidden nails of the PU roof panel | |
Effective width (mm) | 930 | |
Crest height (mm) | 40 | |
Core thickness (mm) | 50, 75, 80, 100, etc. | |
Recommand steel plates | Brand | Bao Steel, Yieh Phui Steel, Guanzhou Steel, etc. |
Painting | PVDF, SMP, HDP, PE; The top painting should be above 25 μm | |
Galvanized layer | Exterior plate: 55% Aluzinc above 100g/m2 or Zinc coating above 150g/m2 | |
Inner plate: 55% Aluzinc above 70g/m2 or Zinc coating above 100g/m2 |
