The polyurethane cold room panel is a new composite panel which takes light rigid polyurethane foams as the core material and colorful steel plates or stainless steel plates as the surface material.
The polyurethane cold room panel is a new composite panel which takes light rigid polyurethane foams as the core material and colorful steel plates or stainless steel plates as the surface material. The new composite panel has advantages such as a low heat conductivity coefficient, good load resistance performance, a high percentage of close area, excellent flame resistance performance and a wide scope of temperature resistance, can effectively prevent cold energy transmission due to the larger temperature difference between the inside and the outside so cold rooms are more energy-saving and the working effciency of cold rooms is improved. It is mainly used in the food, slaughter, medicine, cold chain logistics and other industries.

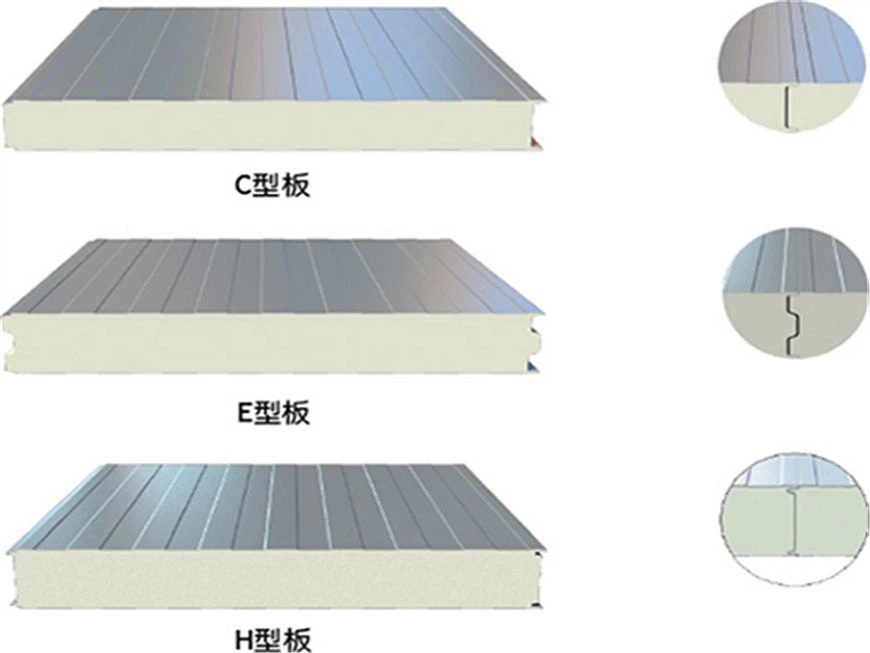

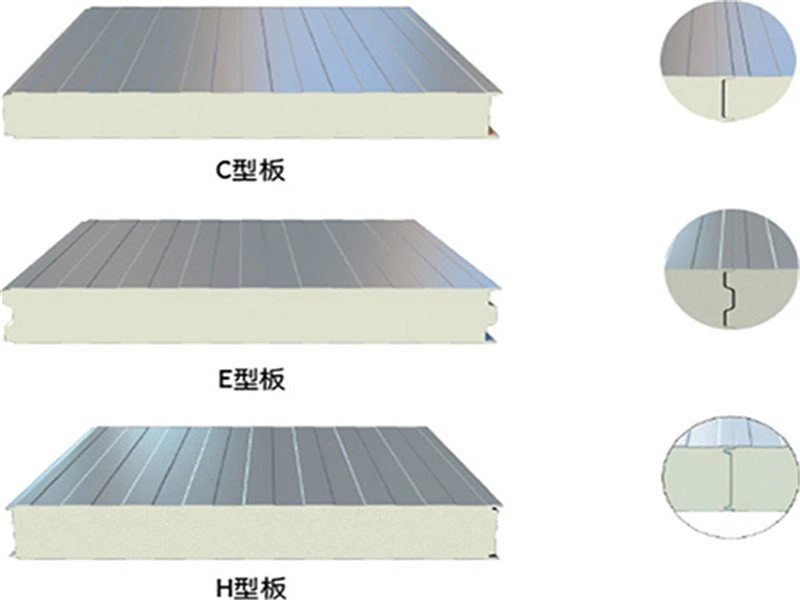

PLATE TYPE
PERFORMANCE DESCRIPTION
1. It adopts the unique concave-convex type which improves the tightness of the socket of the panel.
2. The panel is even and stable. The dimensional stability is good.
3. It has a high-efficient thermal insulation effect and an excellent waterproof effect. It is a green and environmental-friendly product.
4. Construction and installation are convenient and rapid.
PRODUCT PARAMETERS
Product type | Effective width | Steel thickness | Core thickness | Steel plate selection |
WSD-930 | 930mm | 0.4mm-0.8mm | 50, 75, 100, 120, 150, 180, 200 | Color coated plate, Stainless steel, Color aluminum plate |
WSD-1000 | 1000mm | 0.4mm-0.8mm | 50, 75, 100, 120, 150, 180, 200 |
